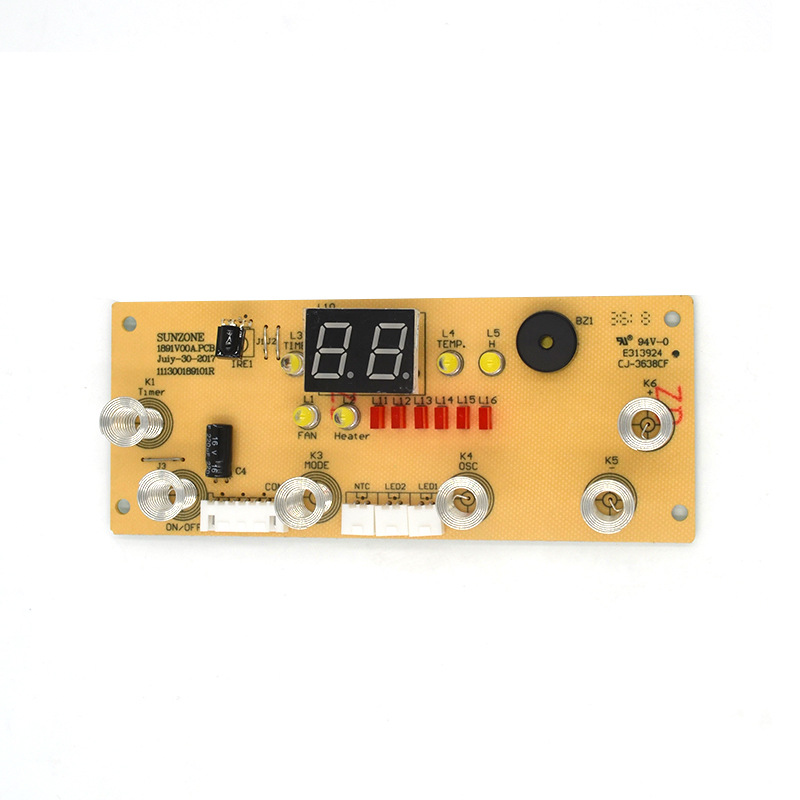

    Single Sided Copper Electronics Assembly Services Pcb Board 4mm For Cold Air Fan

    Ask Lasest Price
    Model Number : 017
    Supply Ability : 80000piece/month
    Price : To be negotiated
    Brand Name : GUYLAND
    Certification : ISO9001
    Delivery Time : 30-40days
    Payment Terms : TT
    • Product Details
    • Company Profile

    Single Sided Copper Electronics Assembly Services Pcb Board 4mm For Cold Air Fan

    PCBA Circuit Board For Cold Air Fan Customized Electronic Single-Sided Copper Circuit Board


    ItemSpecification
    1Numbr of Layer1-18Layers
    2MaterialFR-4,FR2.Taconic,Rogers, CEM-1 CEM-3,ceramic , crockery Metal-backed Laminate
    3Surface FinishHASL(LF), Gold plating, Electroless nickel immersion gold, Immersion Tin, OSP(Entek)
    4Finish Board Thickness0.2mm-6.00 mm(8mil-126mil)
    5Copper Thickness1/2 oz min;12 oz max
    6Solder MaskGreen/Black/White/Red/Blue/Yellow
    7Min.Trace Width & Line Spacing0.075mm/0.1mm(3mil/4mil)
    8Min.Hole Diameter for CNC Driling0.1mm(4mil)
    9Min.Hole Diameter for punching0.9mm(35mil)
    10Biggest panel size610mm*508mm
    11Hole Positon+/-0.075mm(3mil) CNC Driling
    12Conductor Width(W)

    0.05mm(2mil)or;

    +/-20% of original artwork

    13Hole Diameter(H)

    PTH L:+/-0.075mm(3mil);

    Non-PTH L:+/-0.05mm(2mil)

    14Outline Tolerance

    0.125mm(5mil) CNC Routing;

    +/-0.15mm(6mil) by Punching

    15Warp & Twist0.70%
    16Insulation Resistance10Kohm-20Mohm
    17Conductivity<50ohm
    18Test Voltage10-300V
    19Panel Size110×100mm(min);660×600mm(max)
    20Layer-layer misregistration

    4 layers:0.15mm(6mil)max;

    6 layers:0.25mm(10mil)max

    21Min.spacing between hole edge to circuity pqttern of an inner layer0.25mm(10mil)
    22Min.spacing between board oulineto circuitry pattern of an inner layer0.25mm(10mil)
    23Board thickness tolerance

    4 layers:+/-0.13mm(5mil);

    6 layers:+/-0.15mm(6mil)

    24Impedance Control+/-10%
    25Different Impendance+-/10%


    Single Sided Copper Electronics Assembly Services Pcb Board 4mm For Cold Air Fan


    Single Sided Copper Electronics Assembly Services Pcb Board 4mm For Cold Air Fan

    FAQ

    1. Q: Are you manufacturer or trade company?

    A: We are the Manufacturer.
    2. Q: How can I get the samples? Can you send free samples?
    A: We appreciated that you can accept to pay the sample cost and sample freight.
    3.Q: When's the delivery time for the sample?
    A: The samples will be ready for 7~15 days.
    4. Q: Do you offer OEM&ODM service?
    A: Yes, we do.
    5. Q: When's the delivery time for the order?
    A: 10days for small orders , for bulk order , 20-25days days after the receipt of deposit. ltis up to your order quantity and product BOM.
    6. Q: What is your minimum order quantity?
    A: At least 100pcs for each item,different product different MOQ.
    7. Q: What is your payment term?
    A: T/T(50% before production and 50% before shipment)
    8. Q: What is your shipping ways?
    A : For sample we usually send by DHL,FEDEX,UPS,THT,EMS(taking 5-7businessdays). For bulk production we shipping by sea or by air.
    9. Q: How do your factory control quality?
    A: Quality is the most important part for us. In order to control quality better, We have pro-fessional QC.All our products pass 4 times inspection by QC before delivery.
